TP-1 T-Type Connector Beam-to-Column Connector Steel Structure Right-Angle Flat Plate Connector - 3*100*300*250
T-Type Connector Beam-to-Column Connector Steel Structure Right-Angle Flat Plate Connector - 3*100*300*250
Wood Structure ConnectorsLight Steel ConnectorsHeavy Timber Structural ConnectorsBeam-Column Structural ConnectorPlate ConnectorT-Connector
- SKU: TP-1
- Variant: 3*100*300*250
- Size: 3 × 100 × 300 × 250 mm0.12 × 3.94 × 11.81 × 9.84 in
- Weight: 1.06 kg
- Inquiry
Product Description
The TP-1 T-Type Connector is designed for vertical connections between beams and columns. Made of high-quality steel, it provides a stable and reliable structure. Suitable for beam-column joint reinforcement in wood, light-gauge steel, and heavy timber construction, it is easy to install and effectively enhances the shear and tensile performance of the overall structure. Ideal for residential, commercial, and outdoor wood structure projects, it is the perfect connection and reinforcement hardware.

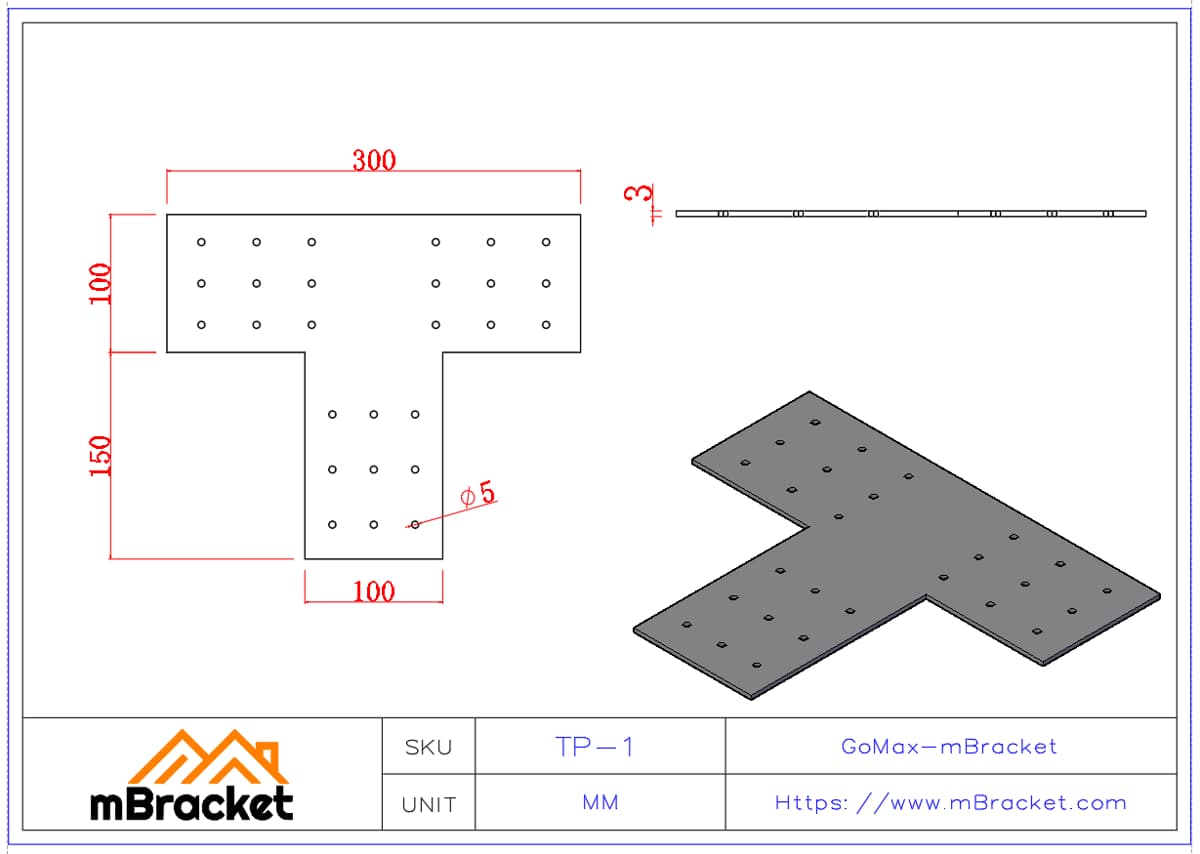

Product Dimensions

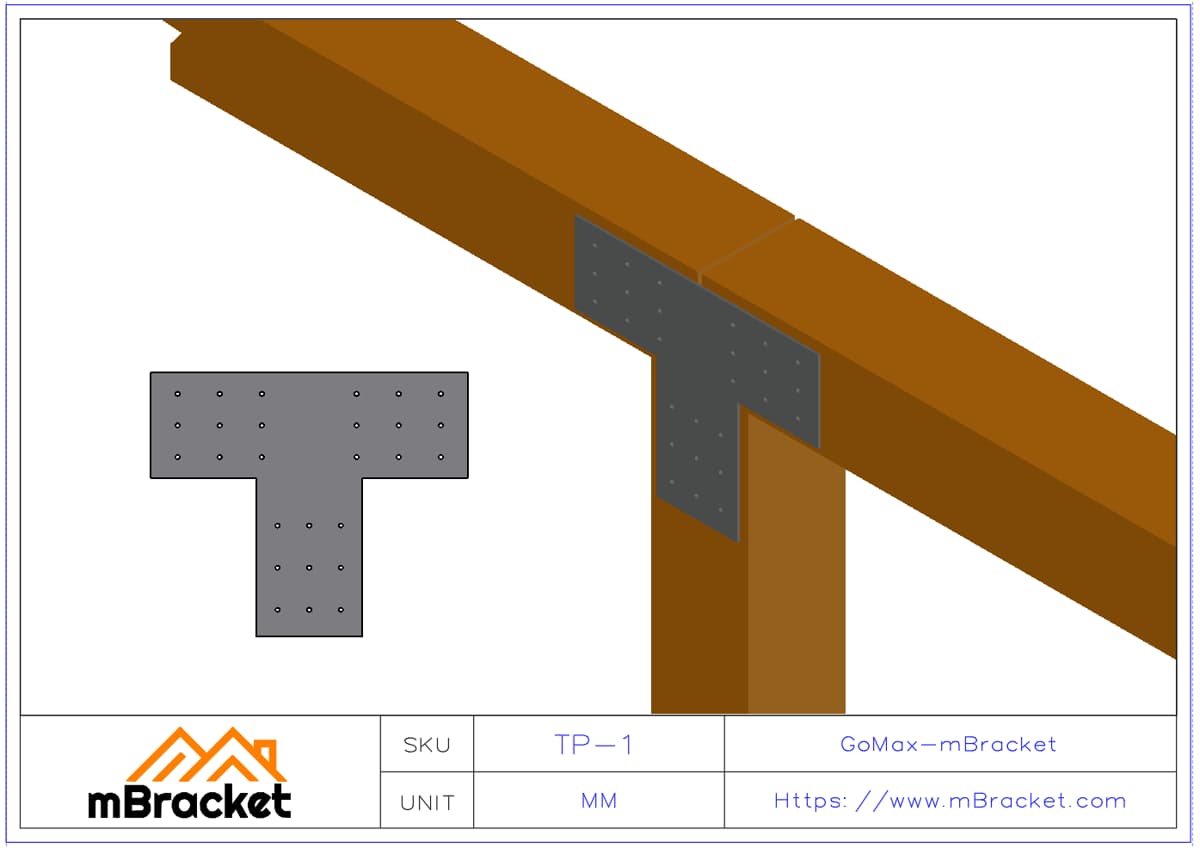

Application Example
