PL-7 Flat Beam Connector Joist Splice Plate Steel & Wood Structure Reinforcement Connector - 3.0*80*124
Flat Beam Connector Joist Splice Plate Steel & Wood Structure Reinforcement Connector - 3.0*80*124
Wood Structure ConnectorsLight Steel ConnectorsHeavy Timber Structural ConnectorsBeam-Column Structural ConnectorPlate Connector
- SKU: PL-7
- Variant: 3.0*80*124
- Size: 3 × 80 × 124 mm0.12 × 3.15 × 4.88 in
- Weight: 0.234 kg
- Inquiry
Product Description
This flat beam connector is designed for splicing and reinforcing beams to beams and joists to joists. Made from 3.0mm thick steel plate, dimensions 80*124mm, with strong load-bearing capacity. Suitable for wood structures, light gauge steel framing, and heavy timber construction. Easy to install, effectively enhancing overall structural stability. Ideal for building renovation, timber frame construction, and suspended ceiling applications.

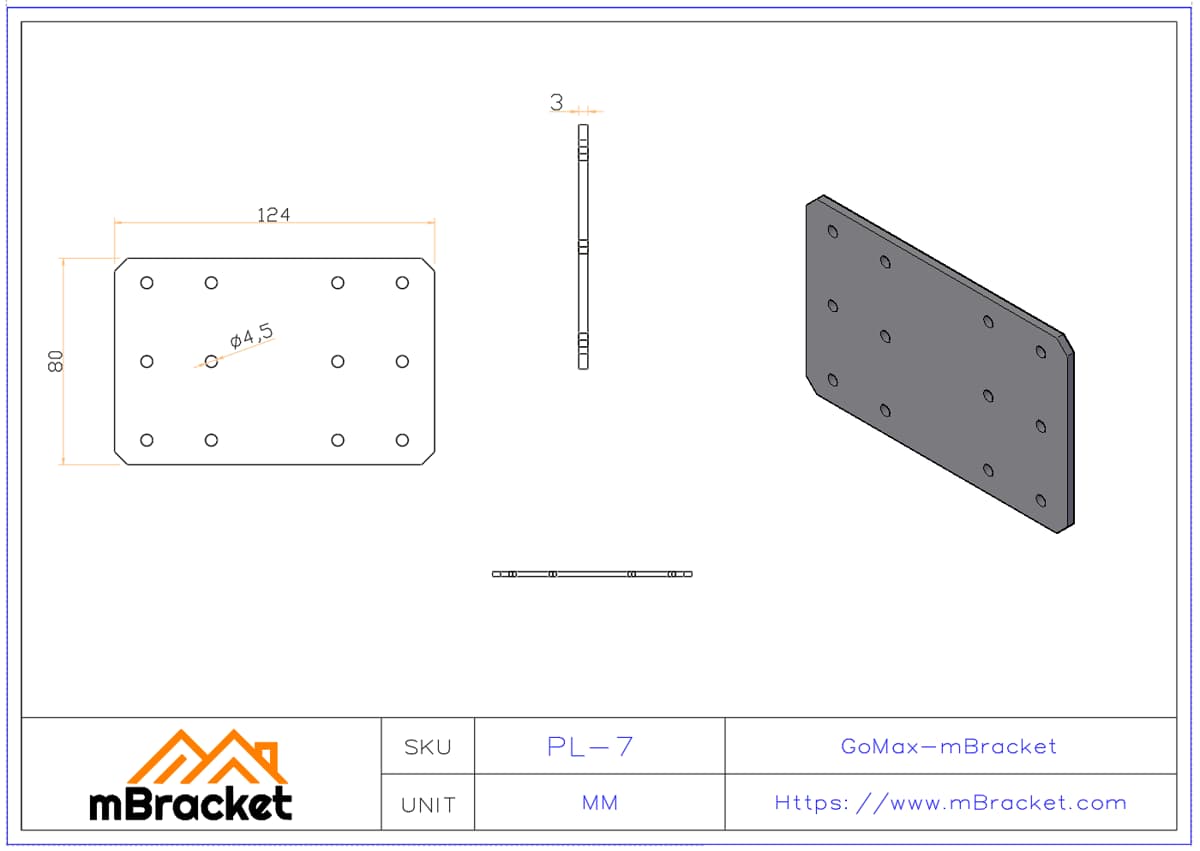

Product Dimensions
