PS-41412-3 Square Post Base Column Cap Sleeve Connector - 4*140*140*120
Square Post Base Column Cap Sleeve Connector - 4*140*140*120
- SKU: PS-41412-3
- Variant: 4*140*140*120
- Size: 4 × 140 × 140 × 120 mm0.16 × 5.51 × 5.51 × 4.72 in
- Weight: 2.6 kg
- Inquiry
Product Description
This square post base (column cap) is designed for heavy timber and post-and-beam structures, made from high-quality steel to provide a secure connection between the post and foundation. The sleeve structure allows for easy installation and effectively transfers vertical loads while resisting uplift forces. Suitable for outdoor wood decks, pergolas, awnings, and similar projects.

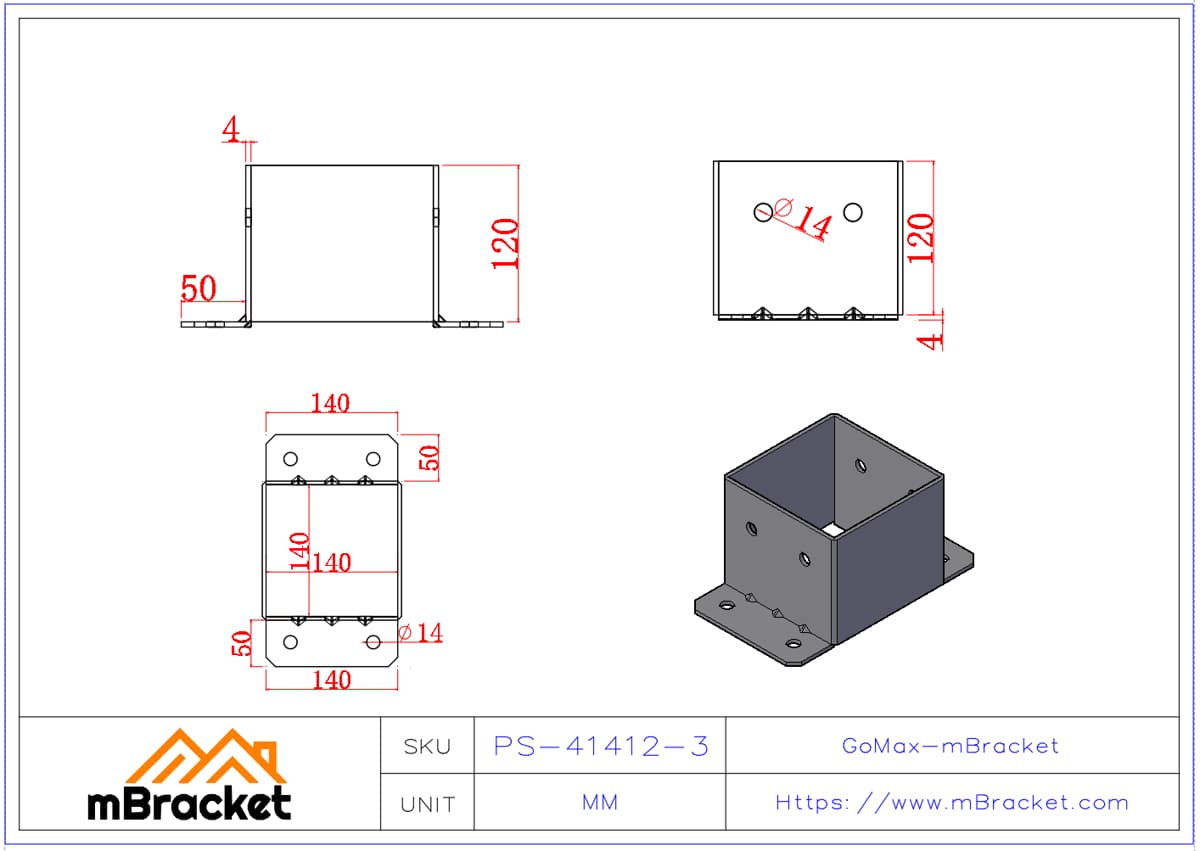

Product Dimensions

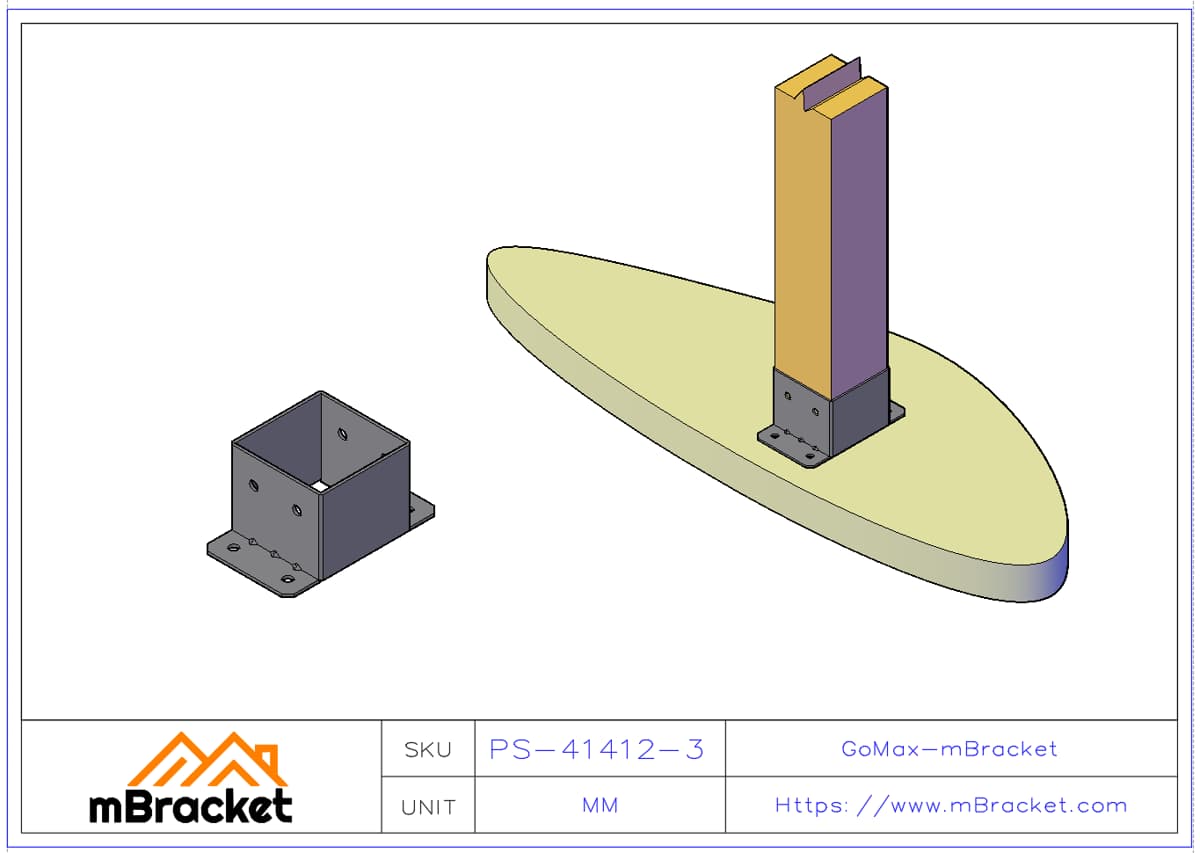

Application Example
Keywords
post basecolumn basesquare post capsleeve connectorcolumn cap connectortimber post base hardwareheavy timber connectorpost and beam connectoroutdoor deck post basepergola post base
