T6910 T-Shaped Post Base Concealed Angle Bracket Wood Structure Column to Ground Connector Hardware - 6*89*89*100
T-Shaped Post Base Concealed Angle Bracket Wood Structure Column to Ground Connector Hardware - 6*89*89*100
Heavy Timber Structural ConnectorsBeam-Column Structural ConnectorCorrosion-Resistant Wood ConnectorsT-ConnectorPost BaseHidden connectors
- SKU: T6910
- Variant: 6*89*89*100
- Size: 6 × 89 × 89 × 100 mm0.24 × 3.5 × 3.5 × 3.94 in
- Weight: 0.76 kg
- Inquiry
Product Description
This T-shaped post base connector is designed for secure connection between wood columns and the ground, suitable for columns ranging from 89x89 to 110x110 mm. Featuring a concealed installation method, it is both aesthetically pleasing and robust, making it an ideal choice for beam-column structures, heavy timber construction, and treated wood projects. Custom sizes are available to meet specific project requirements.

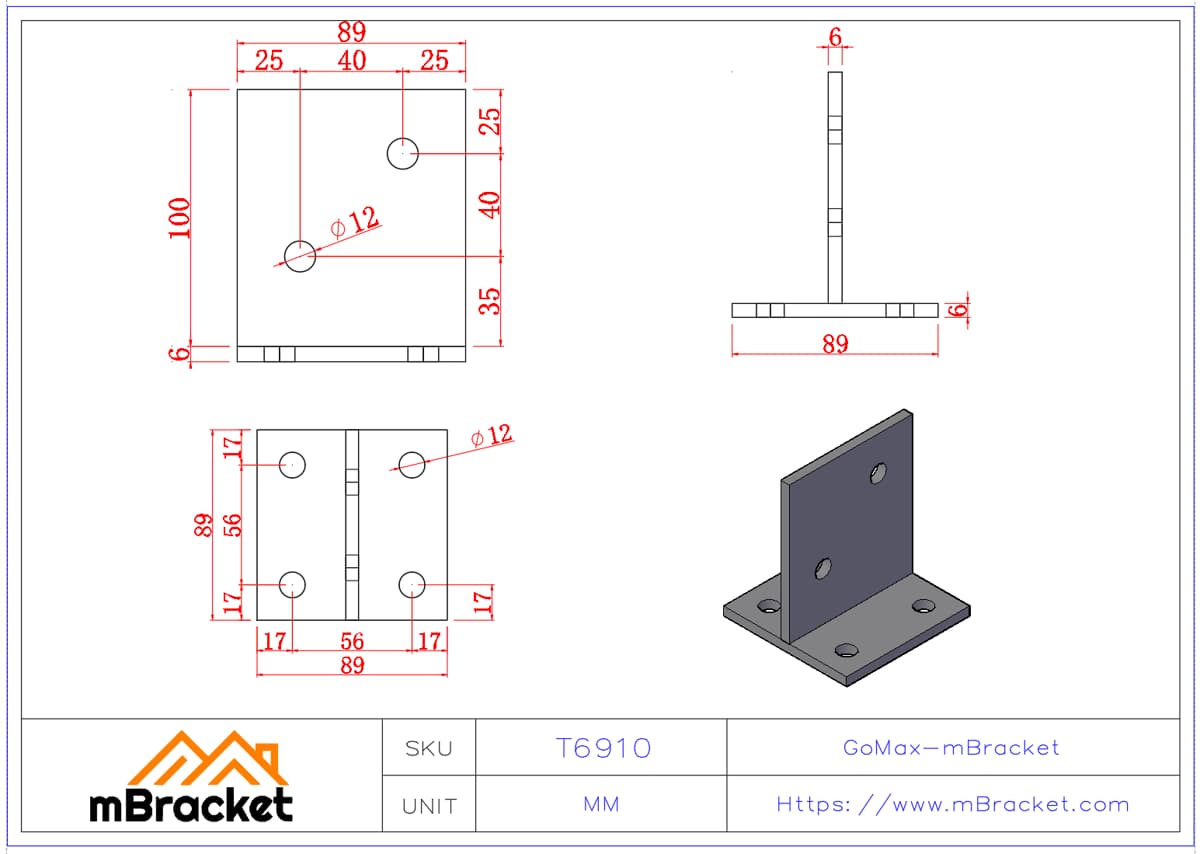

Product Dimensions
