JUS-17611 U-Shaped Beam Hanger Connector Wood Structure Beam-Column Fixing Bracket - 1*76*110

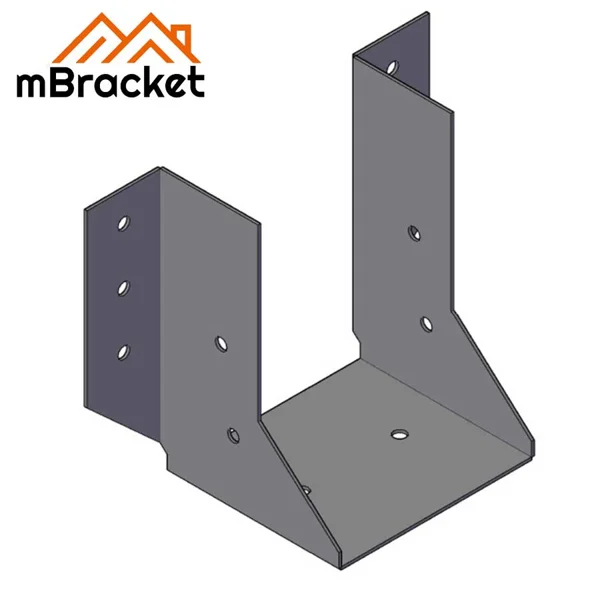

U-Shaped Beam Hanger Connector Wood Structure Beam-Column Fixing Bracket - 1*76*110
- SKU: JUS-17611
- Variant: 1*76*110
- Size: 1 × 76 × 110 mm0.04 × 2.99 × 4.33 in
- Weight: 0.157 kg
- Inquiry
Product Description
This U-shaped beam hanger connector is specifically designed for wood beams with specifications of 76*110mm and 76*120mm, manufactured from 1mm thick high-quality steel to provide reliable support and fixation. Easy to install, it effectively distributes beam loads, enhancing the stability and safety of wooden houses or timber structures. Suitable for applications such as wooden house construction, beam-column reinforcement, and outdoor wooden decks, it is a practical choice for carpenters and architects.

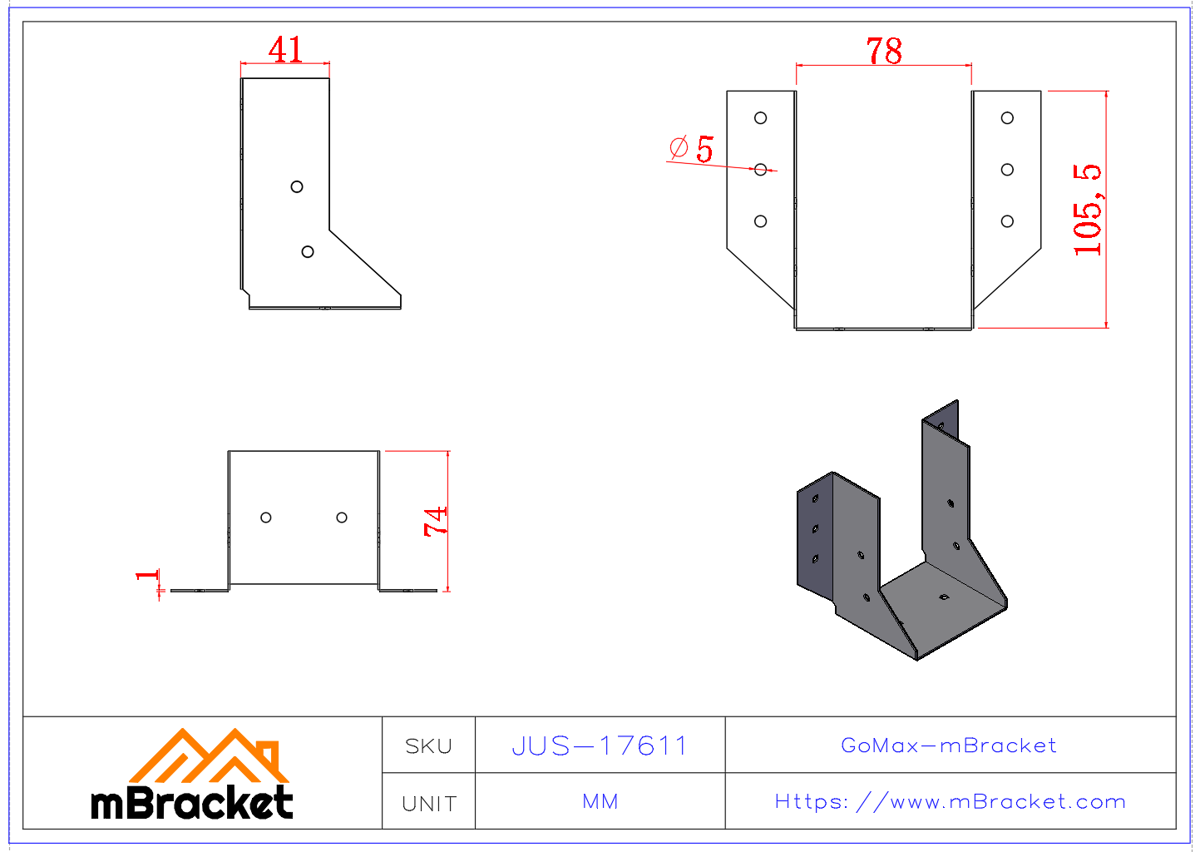

Product Dimensions
